大佬求助，pd异常

fengJian · 2025 年7 月 31 日 07:57

【TiDB 使用环境】生产环境
【TiDB 版本】v8.1.0
【操作系统】ubuntu20.04.1
【部署方式】
【集群数据量】
【集群节点数】3台机器，每台机器都是1个pd，1个flash，3个kv
【问题复现路径】做过哪些操作出现的问题
【遇到的问题：问题现象及影响】
晚上出现连接不到数据库的问题，每天的tiup dumping任务也会失败，报错显示是连不到pd，查看监控发现有短时间，监控不到数据，查看日志发现有一个节点的kv oom了，在pd日志中发现，有与一个节点的pd时间不同步的问题，之前没有做时间同步，刚刚做上
【资源配置】

【复制黏贴 ERROR 报错的日志】
连接tidb报错：
Copy_of_ODBC_Connector_1: ODBC function “SQLExecDirect()” reported: SQLSTATE = HY000: Native Error Code = 9,001: Msg = [MySQL][ODBC 5.3(w) Driver][mysqld-8.0.11-TiDB-v8.1.0]PD server timeout: (CC_OdbcAdapter::preRun, file CC_OdbcAdapter.cpp, line 501)
tiup dumping报错：
[2025/07/30 23:22:00.183 +08:00] [ERROR] [pd_service_discovery.go:586] [“[pd] failed to update service mode”] [urls=“[http://192.168.176.1:2379,http://192.168.176.2:2379,http://192.168.176.3:2
379]”] [error=“[PD:client:ErrClientGetClusterInfo]error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY: error:rpc error: code = Dead
lineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY”]
[2025/07/30 23:22:02.997 +08:00] [INFO] [status.go:37] [progress] [tables=“432/1084 (39.9%)”] [“finished rows”=177064834] [“estimate total rows”=447005139] [“finished size”=163.7GB] [“average
speed(MiB/s)”=229.5108308184227] [“recent speed bps”=238963153.23269615] [“chunks progress”=“52.28 %”]
[2025/07/30 23:22:21.879 +08:00] [ERROR] [pd_service_discovery.go:586] [“[pd] failed to update service mode”] [urls=“[http://192.168.176.1:2379,http://192.168.176.2:2379,http://192.168.176.3:2
379]”] [error=“[PD:client:ErrClientGetClusterInfo]error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY: error:rpc error: code = Dead
lineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY”]
[2025/07/30 23:22:27.605 +08:00] [INFO] [pd_service_discovery.go:910] [“[pd] cannot update member from this url”] [url=http://192.168.176.1:2379] [error=“[PD:client:ErrClientGetMember]error:rp
c error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.1:2379 status:READY: error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.1
68.176.1:2379 status:READY”]
[2025/07/30 23:22:31.152 +08:00] [ERROR] [pd_service_discovery.go:586] [“[pd] failed to update service mode”] [urls=“[http://192.168.176.1:2379,http://192.168.176.2:2379,http://192.168.176.3:2
379]”] [error=“[PD:client:ErrClientGetClusterInfo]error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY: error:rpc error: code = Dead
lineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY”]
[2025/07/30 23:22:47.849 +08:00] [ERROR] [pd_service_discovery.go:586] [“[pd] failed to update service mode”] [urls=“[http://192.168.176.1:2379,http://192.168.176.2:2379,http://192.168.176.3:2
379]”] [error=“[PD:client:ErrClientGetClusterInfo]error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY: error:rpc error: code = Dead
lineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY”]
[2025/07/30 23:23:00.430 +08:00] [INFO] [pd_service_discovery.go:910] [“[pd] cannot update member from this url”] [url=http://192.168.176.1:2379] [error=“[PD:client:ErrClientGetMember]error:rp
c error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.1:2379 status:READY: error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.1
68.176.1:2379 status:READY”]
[2025/07/30 23:23:00.430 +08:00] [ERROR] [pd_service_discovery.go:586] [“[pd] failed to update service mode”] [urls=“[http://192.168.176.1:2379,http://192.168.176.2:2379,http://192.168.176.3:2
379]”] [error=“[PD:client:ErrClientGetClusterInfo]error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY: error:rpc error: code = Dead
lineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY”]
[2025/07/30 23:23:31.351 +08:00] [INFO] [pd_service_discovery.go:910] [“[pd] cannot update member from this url”] [url=http://192.168.176.2:2379] [error=“[PD:client:ErrClientGetMember]error:rp
c error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY: error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.1
68.176.2:2379 status:READY”]
[2025/07/30 23:23:31.351 +08:00] [ERROR] [pd_service_discovery.go:586] [“[pd] failed to update service mode”] [urls=“[http://192.168.176.1:2379,http://192.168.176.2:2379,http://192.168.176.3:2
379]”] [error=“[PD:client:ErrClientGetClusterInfo]error:rpc error: code = DeadlineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY: error:rpc error: code = Dead
lineExceeded desc = context deadline exceeded target:192.168.176.2:2379 status:READY”]
[2025/07/30 23:23:43.279 +08:00] [INFO] [writer.go:272] [“no data written in table chunk”] [database=ODS_GF_ISMS] [table=CE_DIM_DAT05_SAP] [chunkIdx=0]
[2025/07/30 23:24:02.087 +08:00] [INFO] [status.go:37] [progress] [tables=“433/1084 (39.9%)”] [“finished rows”=183050526] [“estimate total rows”=447005139] [“finished size”=172.5GB] [“average
speed(MiB/s)”=71.01821853528952] [“recent speed bps”=74418596.28237112] [“chunks progress”=“54.06 %”]
【其他附件：截图/日志/监控】
dashborad 收集的erro级别logs.zip (262.9 KB)

fengJian · 2025 年7 月 31 日 08:12

出现oom的tikv完整日志：
tikv.log (96.1 MB)
3个节点的pd日志：
pd.log.zip (32.8 MB)

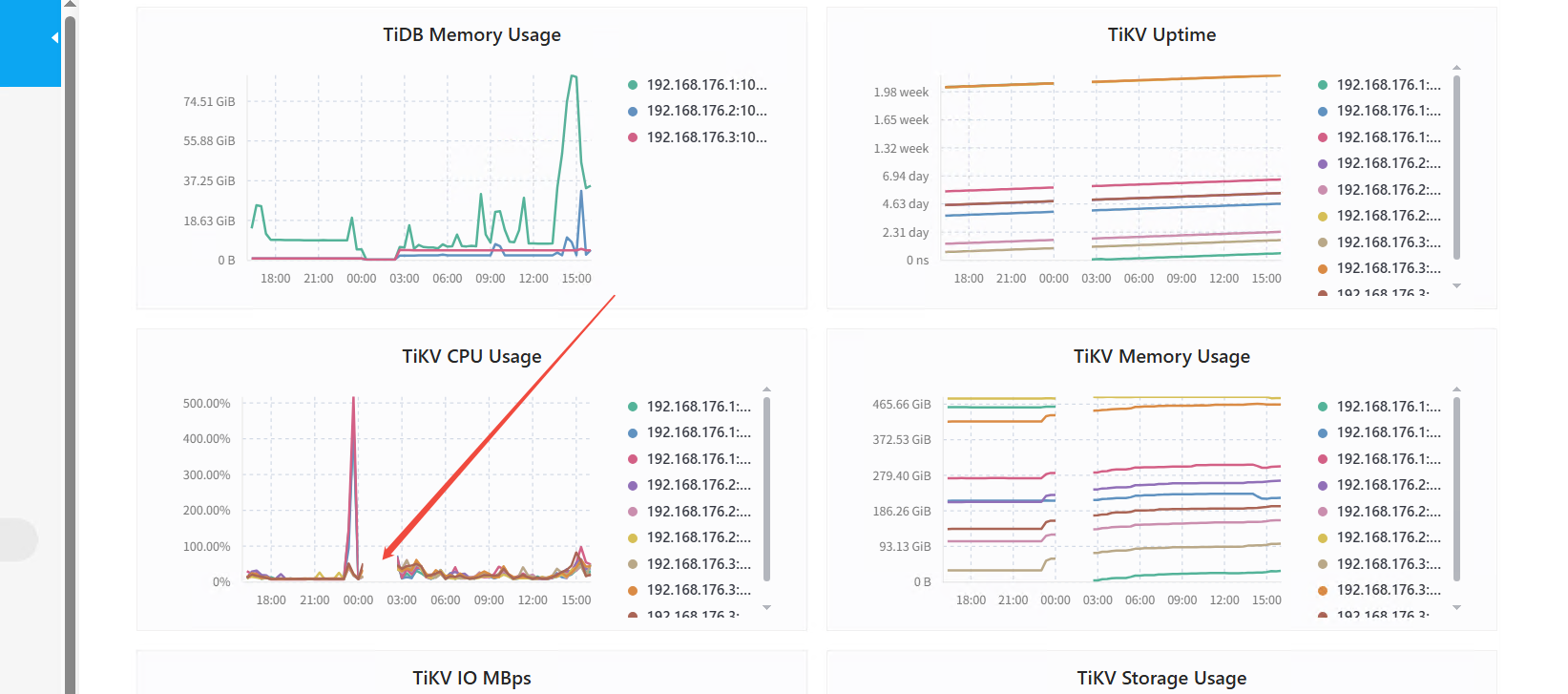

监控中断截图：

Kongdom · 2025 年7 月 31 日 08:37

看看tidb.log里有记录导致OOM的sql语句么？

Billmay表妹 · 2025 年7 月 31 日 08:38

建议分开部署，要不然会互相影响~

tidb菜鸟一只 · 2025 年7 月 31 日 08:39

首先不建议tiflash节点和其他按节点混布，另外一个机器上部署3个tikv需要限制storage.block-cache.capacity参数的值，另外做好numa绑定。
我认为你现在最重要的就是先把tikv的storage.block-cache.capacity先设置下，千万别用默认值

fengJian · 2025 年7 月 31 日 08:42

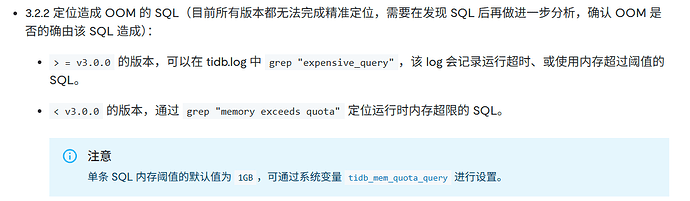

通过这个命令查到了不少语句

fengJian · 2025 年7 月 31 日 08:45

没办法了，我们公司没有用过这个tidb，没有经验，领导直接就给出了这样的规划

Kongdom · 2025 年7 月 31 日 08:47

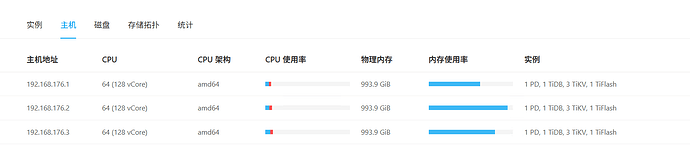

1T内存？膜拜一下。
如果只能这样，就得做好资源管控才行。
https://docs.pingcap.com/zh/tidb/stable/three-nodes-hybrid-deployment/

fengJian · 2025 年7 月 31 日 08:55

好的谢谢大佬，我参考下做下限制

fengJian · 2025 年7 月 31 日 08:57

谢谢大佬，我学习下这个参数调整

TiDBer_xTvoCh2f · 2025 年7 月 31 日 09:25

tiflash最好单独，这个东东占用资源太高，kv还差点

fengJian · 2025 年8 月 1 日 07:08

大佬，tikv的这个参数storage.block-cache.capacity，我的每一台机器上面都有3个tikv，每个机器是1T内存，这个参数是要调整到多少G合适呢

tidb菜鸟一只 · 2025 年8 月 1 日 08:09

1024/3*0.45=153G吧，但是你这1T内存，才部署3个tikv啊，你上面挂了多少硬盘，cpu和硬盘够的话，其实可以多部署几个tikv啊
