【 TiDB 使用环境】生产环境 /测试/ Poc
【 TiDB 版本】V6.1.2
【复现路径】 tiup cluster upgrade tidb-test v6.5.0
之后有尝试离线升级，提示成功了，但是tidb节点再也起不来了
【遇到的问题：问题现象及影响】tikv pd可以正常升级，tidb在升级时候提示 Error: failed to restart: 10.125.76.252 tidb-4000.service, please check the instance’s log(/data/tidb-deploy/tidb-4000/log) for more detail.: timed out waiting for port 4000 to be started after 2m0s
【资源配置】

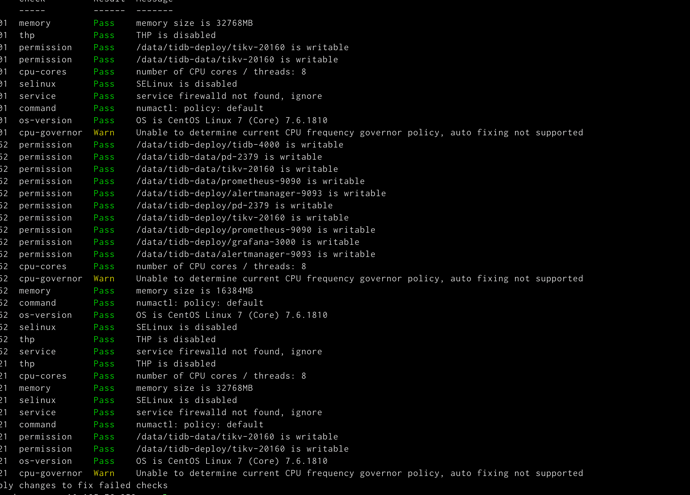

【附件：截图/日志/监控】
2023-02-09T19:10:16.738+0800 DEBUG TaskFinish {"task": "StartCluster", "error": "failed to start tidb: failed to start: 10.125.76.252 tidb-4000.service, please check the instance's log(/data/tidb-deploy/tidb-4000/log) for more detail.: timed out waiting for port 4000 to be started after 2m0s", "errorVerbose": "timed out waiting for port 4000 to be started after 2m0s\ngithub.com/pingcap/tiup/pkg/cluster/module.(*WaitFor).Execute\n\tgithub.com/pingcap/tiup/pkg/cluster/module/wait_for.go:91\ngithub.com/pingcap/tiup/pkg/cluster/spec.PortStarted\n\tgithub.com/pingcap/tiup/pkg/cluster/spec/instance.go:116\ngithub.com/pingcap/tiup/pkg/cluster/spec.(*BaseInstance).Ready\n\tgithub.com/pingcap/tiup/pkg/cluster/spec/instance.go:148\ngithub.com/pingcap/tiup/pkg/cluster/operation.startInstance\n\tgithub.com/pingcap/tiup/pkg/cluster/operation/action.go:373\ngithub.com/pingcap/tiup/pkg/cluster/operation.StartComponent.func1\n\tgithub.com/pingcap/tiup/pkg/cluster/operation/action.go:502\ngolang.org/x/sync/errgroup.(*Group).Go.func1\n\tgolang.org/x/sync@v0.0.0-20210220032951-036812b2e83c/errgroup/errgroup.go:57\nruntime.goexit\n\truntime/asm_amd64.s:1581\nfailed to start: 10.125.76.252 tidb-4000.service, please check the instance's log(/data/tidb-deploy/tidb-4000/log) for more detail.\nfailed to start tidb"}
4000端口未被占用
缩容也报错
[2023/02/09 20:05:33.521 +08:00] [FATAL] [terror.go:300] ["unexpected error"] [error="TiKV version must greater than or equal to 6.2.0-alpha"] [stack="github.com/pingcap/tidb/parser/terror.MustNil\n\t/home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tidb/parser/terror/terror.go:300\nmain.createStoreAndDomain\n\t/home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tidb/tidb-server/main.go:312\nmain.main\n\t/home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tidb/tidb-server/main.go:214\nruntime.main\n\t/usr/local/go/src/runtime/proc.go:250"] [stack="github.com/pingcap/tidb/parser/terror.MustNil\n\t/home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tidb/parser/terror/terror.go:300\nmain.createStoreAndDomain\n\t/home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tidb/tidb-server/main.go:312\nmain.main\n\t/home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tidb/tidb-server/main.go:214\nruntime.main\n\t/usr/local/go/src/runtime/proc.go:250"]
tikv的错误日志
