DM工具在同步过程中遇到panic error: table checkpoint position问题

按照这个方案做了 现在还是有错误 ,具体如下
“result”: true,
“msg”: “”,
“sources”: [
{
“result”: true,
“msg”: “”,
“sourceStatus”: {
“source”: “mysql50133_3306”,
“worker”: “dm-192.168.55.25-8264”,
“result”: null,
“relayStatus”: {
“masterBinlog”: “(mysql57-bin.002172, 243054667)”,
“masterBinlogGtid”: “”,
“relaySubDir”: “75f42d7f-d854-11ed-bda4-286ed4897b05.000001”,
“relayBinlog”: “(mysql57-bin.002130, 188808650)”,
“relayBinlogGtid”: “”,
“relayCatchUpMaster”: false,
“stage”: “Running”,
“result”: null
}
},
“subTaskStatus”: [
{
“name”: “jz33062025”,
“stage”: “Paused”,
“unit”: “Sync”,
“result”: {
“isCanceled”: false,
“errors”: [
{
“ErrCode”: 36001,
“ErrClass”: “sync-unit”,
“ErrScope”: “internal”,
“ErrLevel”: “high”,
“Message”: “panic error: table checkpoint position: (mysql57-bin|000001.002108, 20212127), gtid-set: 00000000-0000-0000-0000-000000000000:0 less than global checkpoint location(position: (mysql57-bin|000001.002108, 31354389), gtid-set: 00000000-0000-0000-0000-000000000000:0) (flushed location(position: (mysql57-bin|000001.002108, 31354389), gtid-set: 00000000-0000-0000-0000-000000000000:0))”,
“RawCause”: “”,
“Workaround”: “”
}
],
“detail”: null
},
“unresolvedDDLLockID”: “”,
“sync”: {
“totalEvents”: “37707”,
“totalTps”: “179”,
“recentTps”: “0”,
“masterBinlog”: “(mysql57-bin.002172, 243054667)”,
“masterBinlogGtid”: “”,
“syncerBinlog”: “(mysql57-bin|000001.002108, 31354389)”,
“syncerBinlogGtid”: “00000000-0000-0000-0000-000000000000:0”,
“blockingDDLs”: [
],
“unresolvedGroups”: [
],
“synced”: false,
“binlogType”: “local”,
“secondsBehindMaster”: “412050”,
“blockDDLOwner”: “”,
“conflictMsg”: “”,
“totalRows”: “37707”,
“totalRps”: “179”,
“recentRps”: “0”
},
“validation”: null
}
]
}
]

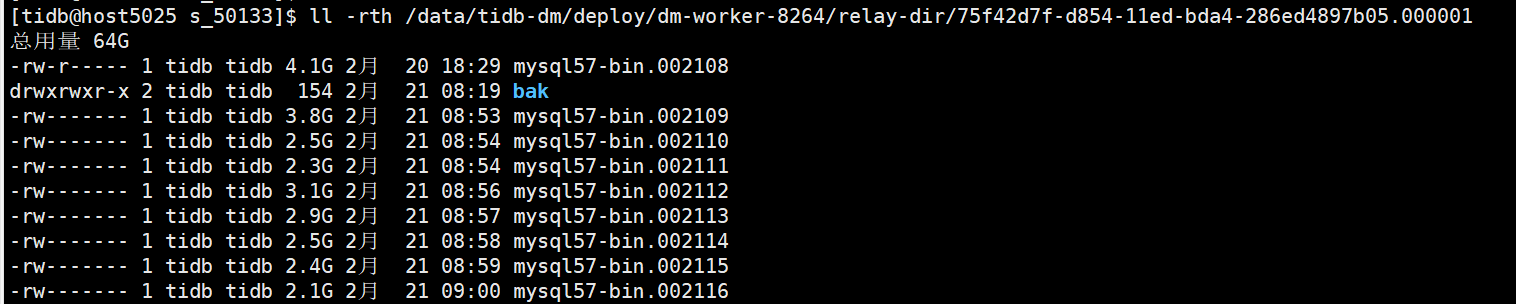

下面是 relay log 目录

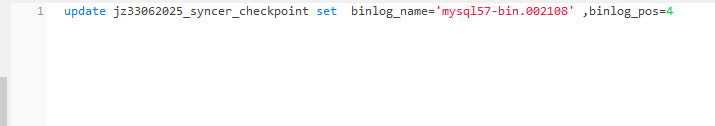

下面是更新 数据库 位置信息

有一个疑问的是 我更新的值为 mysql57-bin.002108 ,启动任务后 变为 mysql57-bin|000001.002108
